Spiral Classifier

Spiral Classifier

Spiral Classifier

Processing ability: 0.15-6 t/h

Spiral diameter: 300-3000 mm

Applied material: iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, tungsten, tin, tantalum, niobium, etc

  • gold
  • iron-ore
  • limestone
  • quartz

TECHNICAL RESOURCE DOCUMENT EXTRACTION AND BENEFICIATION OF ORES AND MINERALS (545KB)

Fill in your email address and click on download.

Free download PDF (Product information, 1005KB)

Fill in your email address and click on download.

Introduction to Spiral concentrator

Spiral classifier or spiral concentrator is one mining machine used for ore dressing production, which precipitated in the liquid at different speeds by means of the proportion of solid particles and which is a device of the mechanical grading.

The screw classifier can grind the material into the powder level in the filter, and then the coarse material can be discharged from the overflow tube of the spiral concentrator. The spiral classifiers is also referred as grader.

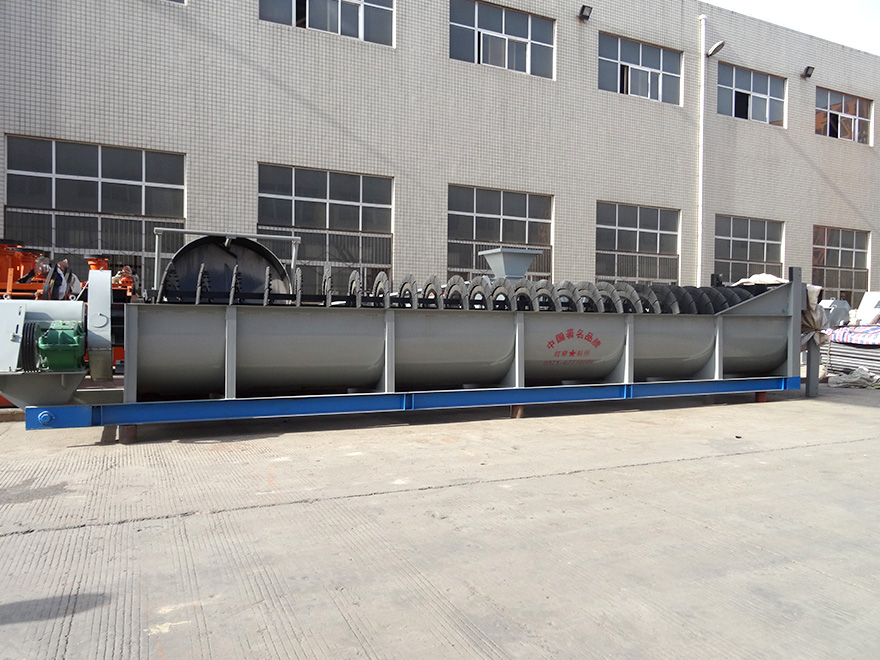

spiral classifier

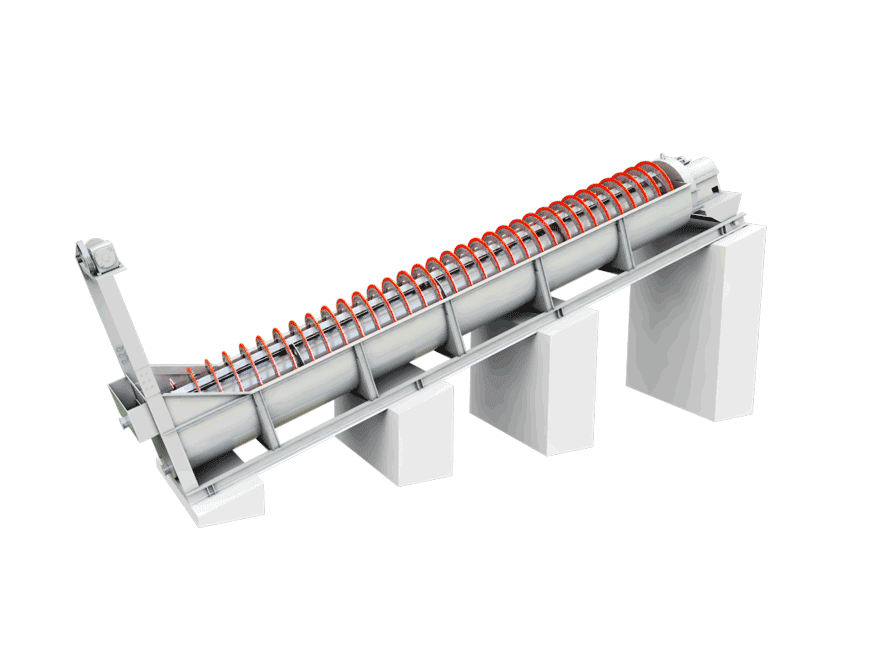

The Working Principle of Classifier

The screw classifier is relying on the different sizes, various specific gravity in order to reach the different theory of settling velocity in the liquid, which can cause the fine mineral particles floating in the water into over flow, and the coarse ore particles sinking into the bottom.

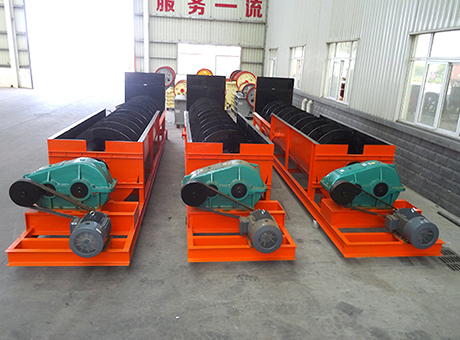

spiral classifier

The base of the machine is made up of channel steel body made of welded steel plate. The main features of this machine is that the head is taking spiral shaft and the main part pieces of it is mainly using wear resistant and durable material, and there are two type of the listing devices including device electric and manual.

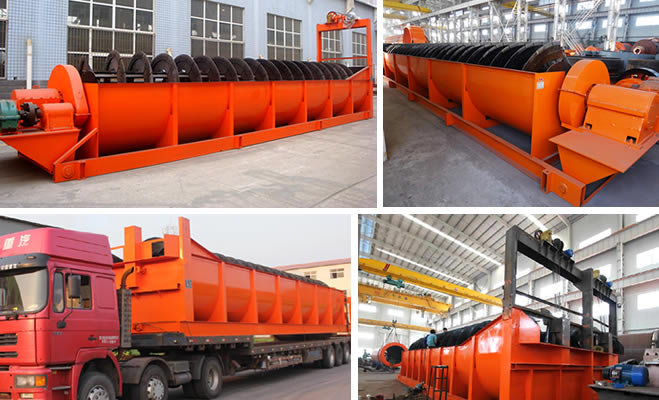

spiral classifier

The features of screw classifier

1. To sort of the separation of excessive powder separation mechanism in sand dry production process.

2. This screw classifier is used for the big or medium production line with dry type.

3. The powder percentage between 0.00--0.75mm can be adjusted of 2%-15%.

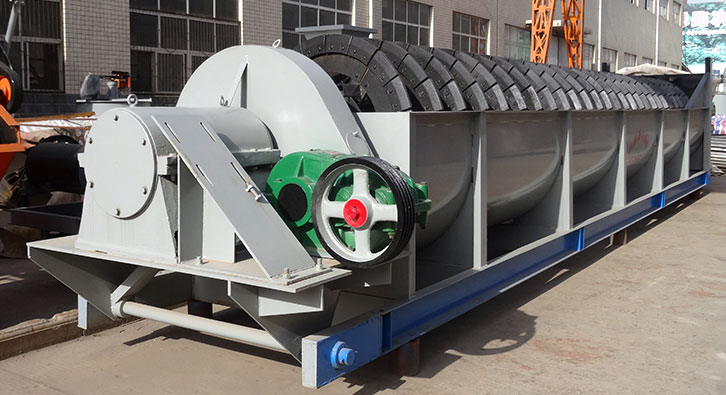

spiral classifier

4. The powder quality can be easily controlled, and the granularity adjustment is easy, flexible and credible.

5. Lower maintenance ratio with the plate of tile.

6. Inverter control technology, operating more concise.

Technical data

Model Spiral
Diameter
(mm)
Trough
Length
(mm)
Spiral
rotate
speed
(r/min)
Processing
capacity(t/d)
Motor
Power
(kw ≤)
Dimensions
(mm≤)
Total
weight
(t)
Sand
-return
Overflow For
driving
For
lifting
Length Width Height
FG-3 300 3000 12-30 80-150 20 1.1 ---- 3850 490 1140 0.7
FG-5 500 4500 8-12.5 135-210 32 1.1 ---- 5430 680 1480 1.9
FG-7 750 5500 6-10 340-570 65 3 ---- 6720 980 1820 3.1
FG-10 1000 6500 5-8 675-1080 110 5.5 ---- 7590 1240 2380 4.9
FC-10 8400 675-1080 85 7.5 ---- 9600 1240 2680 6.2
FG-12 1200 6500 4-6 1170-1870 155 7.5 2.2 8180 1570 3110 8.5
FC-12 8400 1170-1870 120 7.5 2.2 10370 1540 3920 11.0
2FG-12 6500 2340-3740 310 15 4.4 8230 2790 3110 15.8
2FC-12 8400 2340-3740 240 15 4.4 10370 2790 3920 17.6
FG-15 1500 8300 4-6 1830-2740 235 7.5 2.2 10410 1880 4080 12.5
FC-15 10500 1830-2740 185 7.5 2.2 12670 1820 4890 16.8
2FG-15 8300 2280-5480 470 15 4.4 10410 3390 4080 22.1
2FC-15 10500 2280-5480 370 15 4.4 12670 3370 4890 30.7
FG-20 2000 8400 3.6-5.5 3290-5940 400 11-15 3 10790 2530 4490 20.5
FC-20 12900 3210-5940 320 11-15 3 15610 2530 5340 28.5
2FG-20 8400 7780-11880 800 22-30 6 11000 4600 4490 35.5
2FC-20 12900 7780-11880 640 22-30 6 15760 4600 5640 48.7
FG-24 2400 9130 3.67 6800 580 15 3 11650 2910 4970 26.8
FC-24 14130 6800 490 18.5 4 16580 2930 7190 41.0
2FG-24 9130 13600 1160 30 6 12710 5430 5690 45.8
2FC-24 14130 13700 910 37 8 17710 5430 8000 67.9
2FG-30 3000 12500 3.2 23300 1785 40 8 16020 6640 6350 73.0
2FC-30 14300 23300 1410 ---- ---- 17091 ---- 8680 84.8
