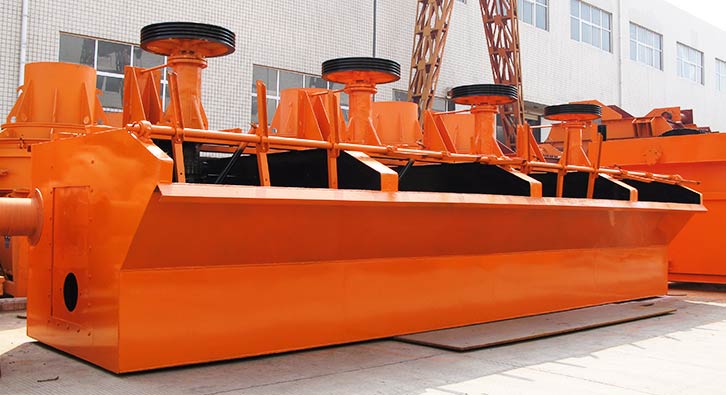

Flotation Cells

Flotation Cells

Processing ability: 0.2–16 m³/min

Impeller rotation speed: 191–400 r/min

Dimensions: 700×700×750–2200×2900×1400 mm

Applied material: non-ferrous metals, ferrous metals, precious metals, non-metallic mineral.

Flotation Cells
send email for the lastest discount

Introduction

The flotation machine is suitable to the selection of non-ferrous and ferrous metal, which also can be applied in non-metal such as coal fluorite and talc sorting. The flotation cell is driven by a motor triangular substituting transmission when impeller rotates, which can form the pressure of centrifugal effect, and on the one hand, suction sufficient air is mixed with the slurry, on the other hand, to stir the slurry mixed with the drug is the second step while refinement of the foam, so that mineral above adhesive foam float to the pulp surface mineralized foam is formed.

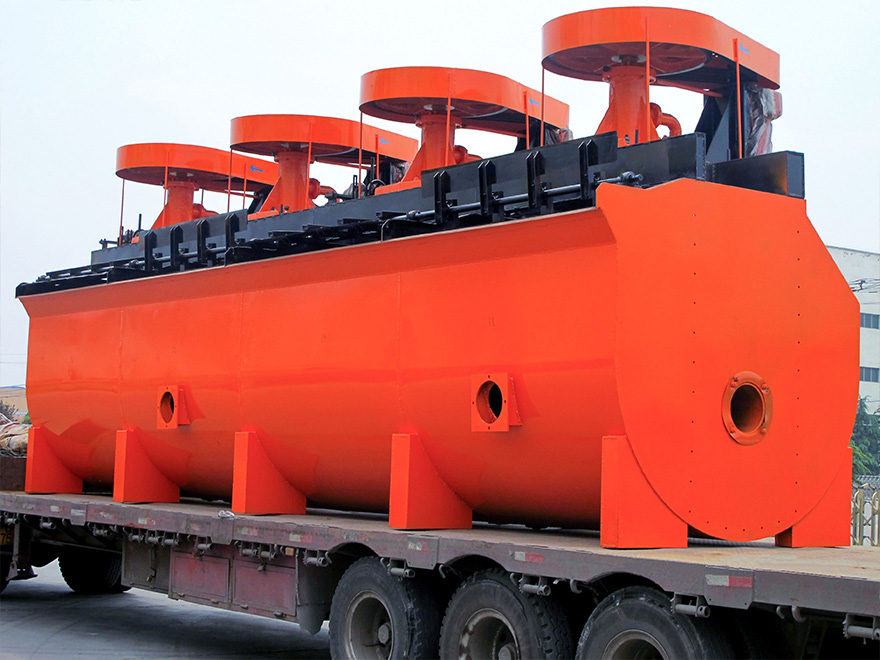

Flotation Cells

To adjust the height of the gate and to control of the liquid level are the useful ways for foam scraper by being scraped off. The slurry with the pharmaceutical treatment can be fixed in bubbles above with some mineral particles selectively, which is scraped off by floating on the surface, and the rest can be still retained in the slurry in order to reach the purpose of sorting the material. There are some types of flotation machine at this right minute, and the most common one is the mechanical mixing flotation machine, which is widely used in our daily life.

The Maintenance of Flotation Machine:

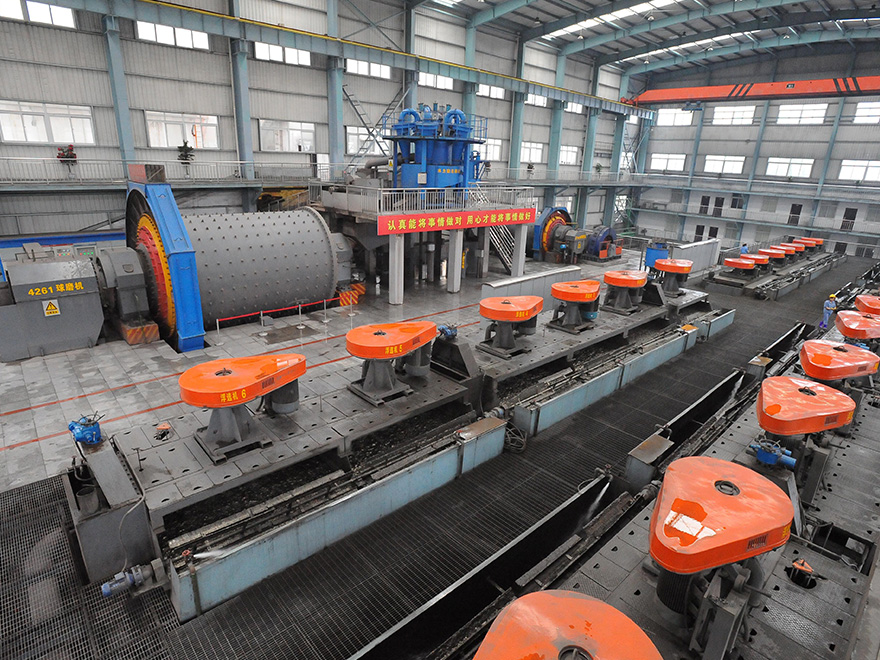

Flotation Machine

1. The working capacity and lifespan of flotation machine is depending on the maintenance and the promise on the ordinary operation of the inner part pieces, and all of the inspection should be finished every three or four month, and the new flotation machine should be examined more frequently at the first beginning of the usage.

2. Only those people who are much more familiar to the flotation machine can have the ability to inspect them.

3. To shorten the stoppage time in order to timely replace the fragile part pieces of it is depending on the whole set of the machine stored in warehouse. And to accurately set on the using date and storing capacity is the basic condition according to the practical situation of it.

4. To guarantee the training on the operator is one direct element to promise the smooth operation of the machine.

5. In order to avoid dirt and useless objects mixed with oil, oiling should filter When flotation machine work, the oil cap should be sealed.

6. Drive, starts only after the inspection process from top to bottom.

7. Car sequence: Press on the gate to switch, press the start button.

8. Car, non-hand touch rotating parts.

Technical data

Category Specification
Model
Effective
cubage
(m³)
Processing
capacity
(m³/min)
Main shaft     loam board Dimensions
(L×W×H)
(mm)
Single
 trough
Weight
(t)
Power
(kw)
Rotate
speed
(r/min)
Rotate
 speed
(r/min)
Power
(kw)
XJK type
flotation
machine
XJK-0.35 0.35 0.18-0.4 1.5 483 25 1.1 700×700×700 0.5
XJK-0.62 0.62 0.3-0.9 3.0 400 25 1.1 900×820×850 1.0
XJK-1.1 1.1 0.6-1.6 5.5 330 25 1.1 1100×1100×1000 1.4
XJK-2.8 2.8 1.5-3.5 11 280 25 1.1 1750×1600×1100 2.5
XJK-5.8 5.8 5-7 22 240 25 1.5 2200×2200×1200 3.6
SF type
flotation
machine
SF-0.37 0.37 0.2-0.4 1.5 386 25 1.1 700×700×750 0.5
SF-0.7 0.7 0.3-0.9 3 400 25 1.1 900×820×950 1.0
SF-1.2 1.2 0.6-1.6 5.5 330 25 1.1 1100×1100×1100 1.9
SF-2.8 2.8 1.5-3.5 11 268 25 1.1 1750×1600×1150 2.6
SF-4 4 2-4 15 220 25 1.5 1850×2050×1200 2.9
SF-8 8 4-8 30 191 25 1.5 2200×2900×1400 4.2
SF-10 10 5-10 30 191 25 1.5 2200×2900×1700 4.5
SF-20 20 5-20 30×2 191 25 1.5 2850×3800×2000 9.9
JJF type
 flotation
machine
JJF-2 2 1-3 7.5 443 25 1.5 1400×1400×1100 1.7
JJF-4 4 2-4 11 305 25 1.5 1600×2150×1250 2.4
JJF-8 8 4-8 22 233 25 1.5 2200×2900×1400 4.5
JJF-10 10 5-10 22 233 25 1.5 2200×2900×1700 4.9
JJF-16 16 5-16 30 180 25 1.5 2850×3800×1700 8.0
JJF-20 20 5-20 37 180 25 1.5 2850×3800×2000 10.5
