Home > Products > Ore dressing machine > Chute Feeder

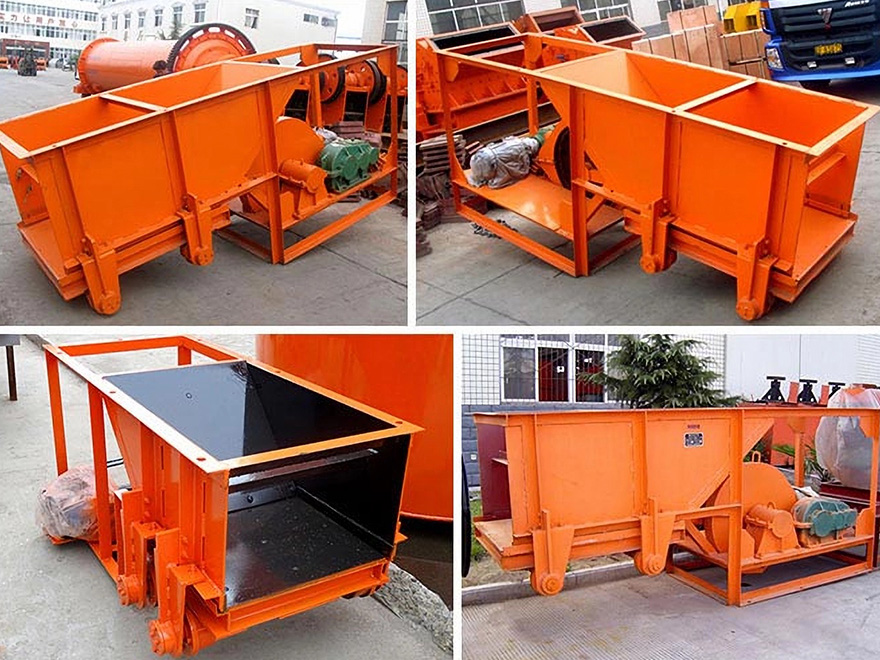

Chute Feeder

Chute Feeder

Chute Feeder

Chute Feeder

Power: 4–7.5 kw

Applied material: powdery, granular materials

Fill in your email address and click on download.

Send E-mail:Market@hxjq.com

Join Us On Whatsapp:Click it to Join in

Introduction

Chute feeder is also known as reciprocating or oscillating feeding machine, which is earlier used in the storage mine shafts. There are so many types and they are all installed with the adjusting gate which is controlled by the operator. The feeder machine is used in the short transportation of metal and non-metal. The chute feeder is widely used in metallurgy, the chemical industry, coal, mining, and the power or electric department, which is conveying the material to some feeding devices.adjusting gate which is controlled by the operator and there is a back and forth movement of the feed pate in the lower portion of the output chute. The feeder machine is used in the short transportation of metal and non-metal. The chute feeder is widely used in metallurgy, the chemical industry, coal, mining, and the power or electric department, which is conveying the material to some feeding devices.

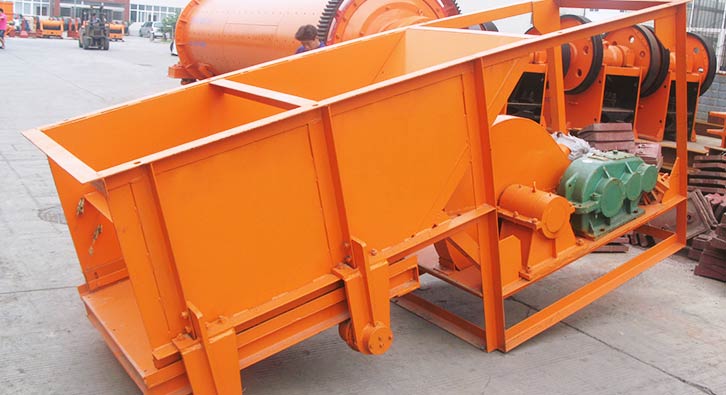

Chute Feeder

The Operating Principles of Chute Feeder:

1. There is the grinding situation on the triangle belt.

2. The lubricating oil used on gearbox can reach the standard line.

3. Ministries fastening bolts are loosening.

4. The trough feeder safety devices such as belt cover are firmly.

5. Skateboard with ADS roll ran skew.

6. The ammeter pointer in zero.

7. Trough to whether the mine machine ministries pin is loosening.

8. Check trough feeder ministries refueling point whether the lack of oil (fat).

9. To check the trough feeder tank in order to see whether there is grinding leakage or other damage to the phenomenon.



Technical data

Technical Parameters of Chute Feeder

Specification Capacity
(t/h)
Motor Power
(kw)
600×500 10.5-25.5 4
980×1240 36-90 7.5
1000×1900 300 7.5
