Ball Mill

Ball Mill

Ball Mill

Production capacity: 0.5-500t/h

Feeding size: ≤25mm

Material handling: cement, silicate, fertilizer, ferrous metal and non-ferrous metal, glass ceramics, etc.

  • copper-ore
  • iron-ore
  • pyrite
  • pyrrhotite

Introduction Ball Mill Grinder

Ball mill grinder is the key machine used after the material is crushed, which is widely used in cement, silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal processing and glass ceramics production industry, and which can be applied to grinding process with dry or wet type. Ball mill grinder can be used in grinding all kinds of mineral rocks and the other material in some industries of ore dressing, building material and the chemical industry, which can be divided into two types, one is dry type and the other is wet type. Ball mills grinder can be classified into lattice-type and overflow type according to the discharging types of raw material.

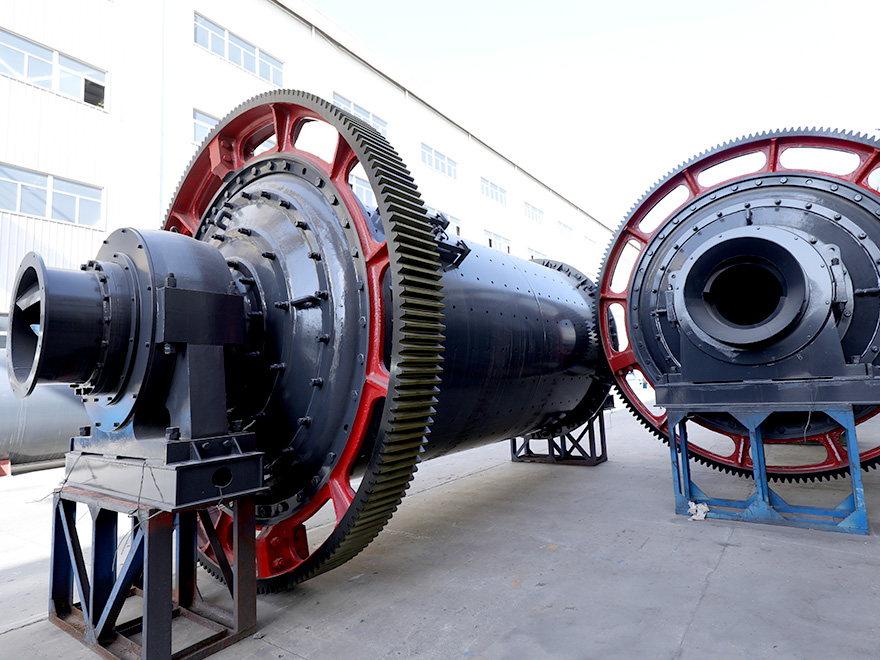

Ball Mill Grinder

The Main Structure of Grinding Mills:

1. Main bearings with a large-diameter stick double row self-aligning bearings, replace the plain bearings to reduce friction, reduce energy consumption, the mill is easy to start.

2. Retain the ordinary mill end cap structure, large-caliber material inlet and outlet, large capacity.

3. Feeder is divided into combined feeder and the drum-shaped feeder two, simple structure, split installation.

4. Inertial impaction equipment running smoothly, and reduce the mill downtime parking maintenance time, improve efficiency.

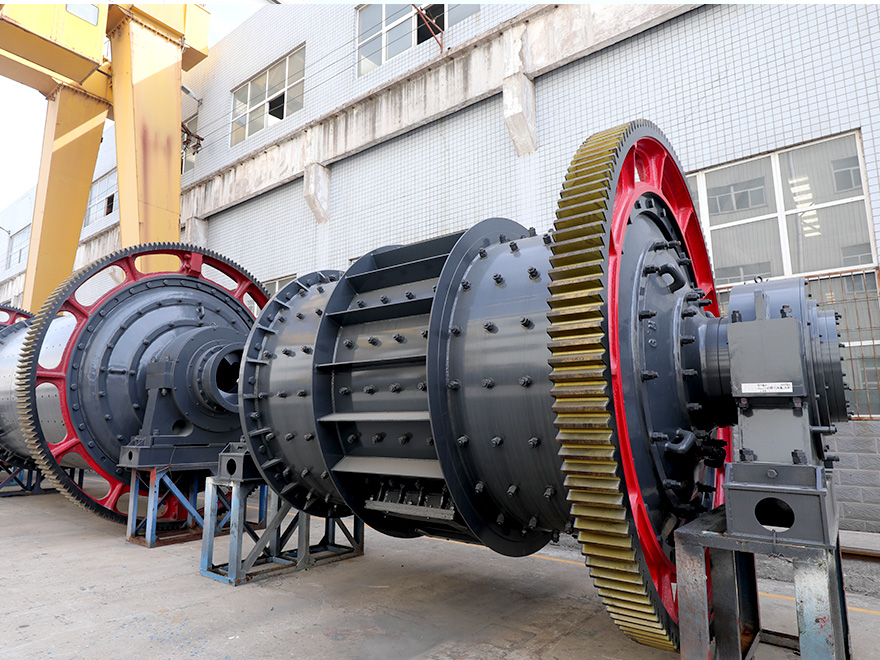

ball grinder

Ball Mill Machine Composition:

The ball grinder is made up of horizontal cylinder, hollow shaft and the head parts, and the barrel length cylinder is equipped with a grinding body which is manufactured with steel plate. Grinding body can be used to steel segment, which is installed in the cylinder grinding bogy according to the different diameter and a certain percentage of loaded barrel. The material is transferred into cylinder body from discharging hollow shaft according to the granularity of the abrasive material, and when the ball mill rotates, the cylinder grinding body will force to stir on the both impact of friction force and centrifugal force, and the raw material near the cylinder liner will be taken away by the cylinder due to its gravity, which will be crushed like a projective material.

Ball Mill Machine

Material is fed to the first warehouse from the feeding device into the compound empty axis spiral, which has the ladder liner and corrugated liner with multiple size steel balls, which is fell down under one centrifugal force after they are brought into one height in order to produce the impact and grinding impact on the material. The crushed material reaching the purpose of coarse crushing will be entered into the second warehouse from monolayer partition panel which has the flat lining with ball mills in order to realize the second crushing and grinding in it. And the last is that the powder discharged through the discharging grate plate, and then the grinding operation is finished.

Technical data

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 ≤25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 ≤25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 ≤25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 ≤25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 ≤25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 ≤25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 ≤25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 ≤25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 148-615 4500 525
