Magnetic Separator

Magnetic Separator

Processing ability: 1–220 t/h

Feeding size: 3–0 mm

Shell diameter: 600–1500 mm

Applied material: magnetite, pyrrhotite, calcined ore, ilmenite, etc

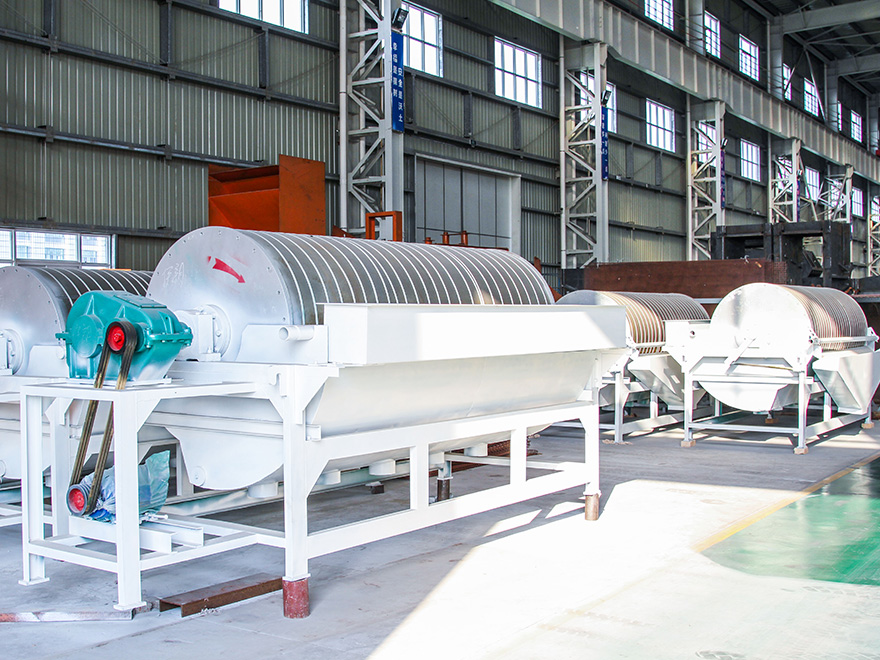

Magnetic Separator
send email for the lastest discount

Introduction to Magnetic drum separator

The magnetic separator, also called magnetic drum separator or magnet separator which is used for removing iron powder is widely applied in resource recovery, the timber industry, mining, ceramic, chemical, food and other workshops, and which is applicable to the granularity below 3mm magnetic wet magnetic separation of iron ore, roasted ore, limonite and other materials, but also for coal, non-metallic minerals, building materials and other materials in addition to iron work, is the industry's most widely used, general-purpose high one of the models.

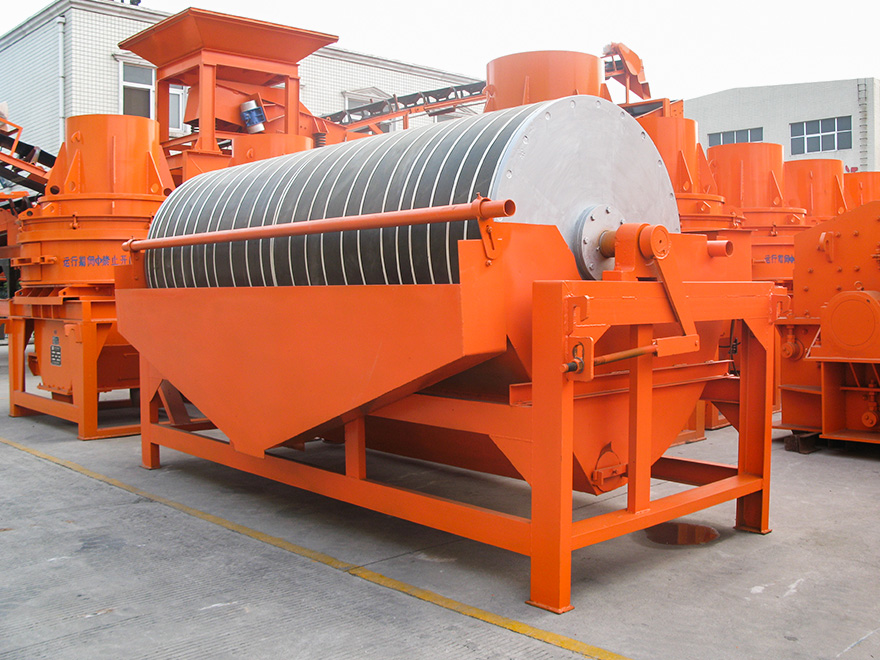

Magnetic drum separator

The magnetic system of china magnetic separator is always taking of the high quality ferrite materials or composite with rare earth magnet. The average magnetic induction of the previous drum table of the magnetic drum separator can be 800-4000mT. The magnet separator can be made of roll-shaped due to the development of the technology and the magnetic strength of the magnet separator can also be improved to 8000mT, which has been the highest magnetic field strength all over the world.

China Magnetic Separator

Some Common Stoppage and Breakdown of China Magnetic Separator:

1. Motor overheating of the magnetic separator and its sound is not normal.

2. The magnet separator is not normal in the operation, and round cylindrical is jammed by obstacles, even the cylinder cannot be rotated, the bottom tank fibrillation.

3. Reducer overheating.

4. The magnetic field strength of the magnetic drum separator becomes weak.

Technical data

Model

Shell diameter

(mm)

Shell lenght

(mm)

Shell rotation

speed(r/min)

Feeding size

(mm)

Processing capacoty

(t/h)

Power(kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
CTB1530 1500 3000 <14 3-0 170-280 11
