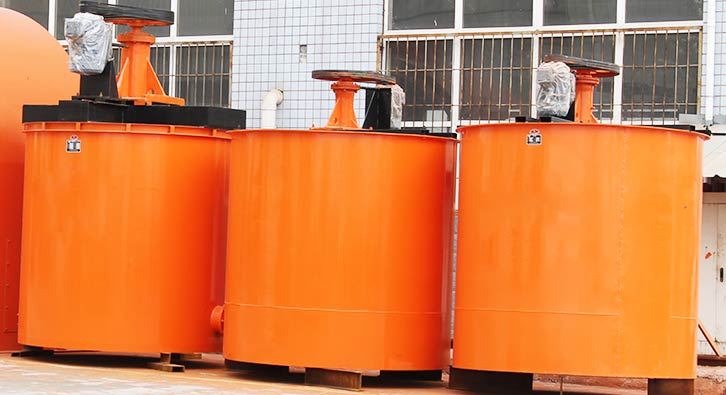

Mixing Barrel

Mixing Barrel

Mixing Barrel

Certificate:ISO9001:2008

Type:Ore dressing machine

Supply Ability:20 Set/month

Mixing Barrel

Feature: Specially designed handles for added comfort and ease of pouring materials; Ideal for mixing self-leveling materials

Fill in your email address and click on download.

Send E-mail:Market@hxjq.com

Join Us On Whatsapp:Click it to Join in

Introduction

Mixing barrel is the key equipment by the moving impeller rotation by the motor v-belt drive on behalf of the drugs and pulp fully mixed, and increasing the pharmaceutical role reaction time which is useful to strength the quality of drug reaction. Mixing vat can be used in ore dressing industry, which also can be applied to some kinds of industrial mixing. Agitation vat us suitable to all kinds of metal ore, especially for the mixing before the ore dressing, which is just the full mixing of pharmaceutical and sufficiently slurry can also be the mixing of the other non metal material. The using concentration cannot be greater than 30 %( by weight), and the particle size of the fixed component is less than 1mm. the form of it is the flat bottomed bucket radiation cycle with the spiral impeller mechanical agitation.

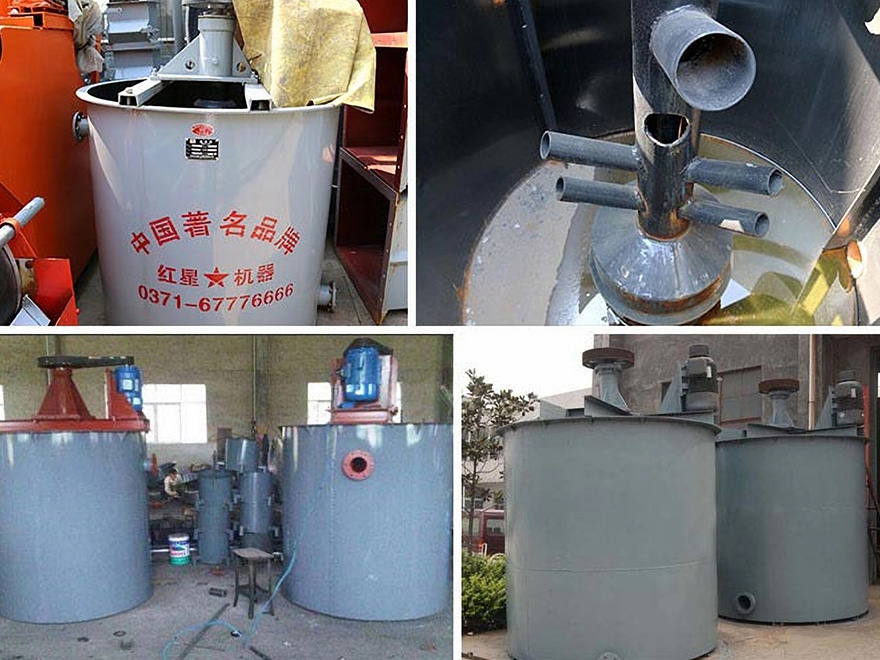

Mining Mixing Barrel

The Performance Characteristics of Mining Mixing Barrel:

1. Compact structure, good seal, and feed port settings the block gray board, to prevent the mist playing.

2. Stir mixing blades fanned when stirred media contact area.

3. The nozzle row set, more water is uniform and can adjust.

4. Leftover ash and low settings box at the bottom of the watershed to ensure that the equipment no dead ends.

5. Mine mixing tube equipment advanced performance, the quality of the finished product is stable, stir rapid discharge.

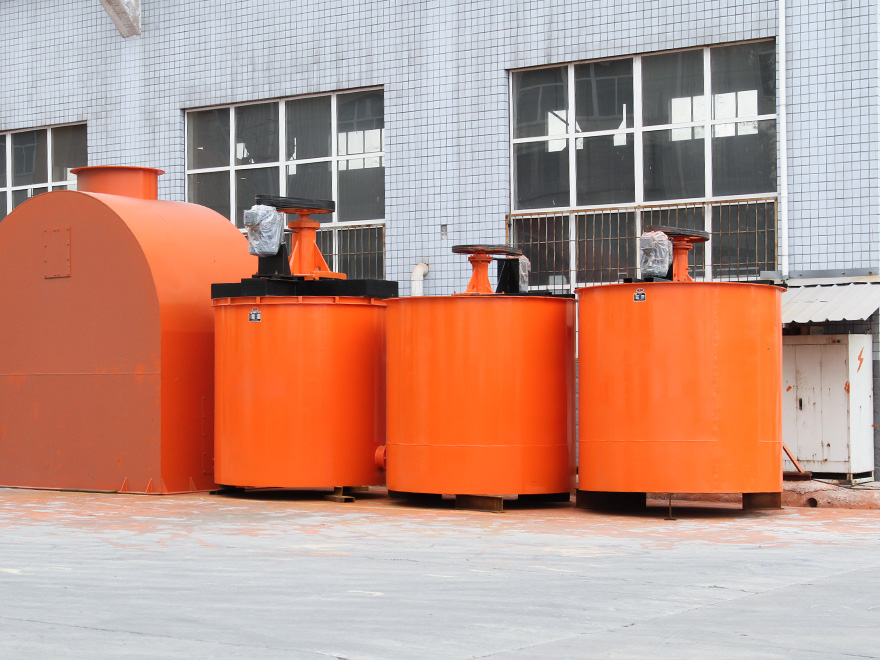

Mixing Vat

The Working Principle and Application of Mixing Vat:

Mixing barrel is the key equipment by the moving impeller rotation by the motor v-belt drive on behalf of the drugs and pulp fully mixed, and increasing the pharmaceutical role reaction time which is useful to strength the quality of drug reaction. Mixing vat can be used in ore dressing industry, which also can be applied to some kinds of industrial mixing. Agitation vat us suitable to all kinds of metal ore, especially for the mixing before the ore dressing, which is just the full mixing of pharmaceutical and sufficiently slurry can also be the mixing of the other non metal material. The using concentration cannot be greater than 30 %( by weight), and the particle size of the fixed component is less than 1mm. the form of it is the flat bottomed bucket radiation cycle with the spiral impeller mechanical agitation.

Instruction for usage: to fasten the pump body parts bolts before the usage, and then to inspect the rotating shaft whether it is flexible or not, and to start motor are the main procedures in the inspecting content. Some fragile part pieces of the machine are the impeller and stator.

Technical data

Category Specification
 Model
Dimensions Effective
cubage(m³)
Rotate
speed(r/min)
Motor
power
(kw)
Dimensions
(L×W×H)
(mm)
Total
weight
(kg)
Diameter
(mm)
Height
(mm)
Agitating
 tank
XB-10×10 1000 1000 0.58 390 1.5 1130×1130×1521 1050
XB-12×12 1200 1200 1.18 390 2.2 1130×1330×1721 1160
XB-15×15 1500 1500 2.2 280 3.0 1750×1640×2190 1270
XB-20×20 2000 2000 5.6 210 5.5 2380×2160×2850 1700
XB-25×25 2500 2500 11.2 190 7.5 2990×2720×3540 3500
XB-30×30 3000 3000 19 140 18.5 4030×3270×3010 5200
XB-35×35 3500 3500 29 230 30 3920×3740×4970 6630
XB-40×40 4000 4000 45 210 37 4520×4320×5570 7830
Lifting
type
XBT-10×15 1000 1500 1 510 2.2 1130×1130×2070 1250
XBT-15×20 1500 2000 2.9 400 4 1636×1768×2785 1677
XBT-20×20 2000 2000 5.6 312 11 2180×2220×3015 3100
High-
efficiency
 leaching
 tank
XF-20×20 2000 2000 7.07 82.5 1.5 2032×2032×3595 2400
XF-25×30 2500 3000 13.5 57.6 2.2 2532×2532×4152 3670
XF-30×30 3000 3000 22.97 50.0 2.2 3180×3180×4673 5340
XF-35×40 3500 4000 35.6 41.0 4.0 3685×3685×5314 7140
XF-40×45 4000 4500 52.78 33.5 4.0 4185×4185×5814 9300
XF-45×50 4500 5000 74.75 33.5 5.5 4685×4685×6466 10500
XF-50×56 5000 5600 102.1 30.6 5.5 5185×5185×6975 12300
XF-55×60 5500 6000 135.4 24.4 7.5 5670×5670×7569 13500
