Sand Maker

Sand Maker

Sand Maker

Processing ability: 0.26–30 m3

Rotate speed: 200–530 r/min

Diameter: 240–850 mm

Applied material: pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone.

  • limestone
  • quartz
  • pebble
  • basalt

Handbook for dust control in mining (10MB)

Fill in your email address and click on download.

Free download PDF (Product information, 1MB)

Fill in your email address and click on download.

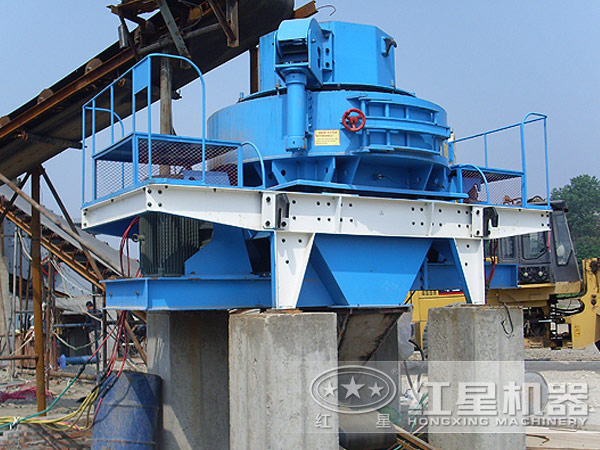

Introduction to Vsi crusher

Vsi Sand maker or Vsi crusher is a type of sand crusher suitable for the crushing of soft, hard and extremely hard material and reshape of those products, which can be used in some areas of ores, cement, refractory, aluminum where the soil clinker, emery, glass raw materials, mechanisms built stone gold slag, especially on the silicon carbide, silicon carbide, sintered bauxite, sand contour hard, special hard and corrosion-resistant materials whose output is higher than other types of crushers yield efficacy.

Sand Maker

The Working Principle of Sand Making Machinery:

The Vsi crusher or sand maker works like this: the material is vertically fell to the impeller of the sand crusher with the high speed rotation from the upper, and then combines with another part under the effect of centrifugal force with a high speed, which is in the shape of umbrella form shunt around the impeller material, and a powerful vortex can be formed between the impeller and the casing, which can be repeated again and again until the material can be crushed into the final result that the mining customers want to get by hitting each other, friction, crushing in the cabinet. And the final material can be discharged from the discharging opening, and the last step is to experience the process of screening and washing by the other mining machines, whose product size is controlled by the screening equipment.

Vsi crusher

The Merits and Features of Vsi Sand Maker:

1. The sand crusher owns high efficiency crushing and coarse grinding function.

2. Structure of the Vsi crusher is simple to install, easy maintenance, low running costs.

3. By the moisture content of materials by non-broken material capacity, impact, moisture content of up to 8%.

4. Excellent product shape, cubic shape, low flakiness content suitable for aggregate shaping, artificial sand and aggregate production of high-grade highways.

5. Bulk density, minimal iron contamination.

Sand Making Machine

The Application of Sand Crusher:

1. The sand crusher can crush river pebbles, rocks (limestone, granite, basalt, diabase, and esite), ore tailings, the artificial sand stone chips.

2. Production of construction aggregate, Highway fabric, cushion material, asphalt concrete and cement concrete aggregate.

3. Production of water conservancy and hydropower engineering, highway, highways, high-speed rail passenger line, bridges, airport runways, municipal engineering, high-rise building mechanisms sand and stone shaping.

 sand crusher

4. Material crushing grinding of the mining areas of front-end crushing process, building materials, metallurgy, chemical, mining, refractory, cement, abrasive industry.

5. High abrasive and secondary disintegration broken, thermal power, metallurgy industry, in addition to sulfur, slag, construction waste crushing and other environmental projects.

6. Glass, quartz sand and other high purity materials production.

Technical data

Model
specification
Max.feeding
size
(mm)
Power
(kw)
Rotation
speed of
impeller
(r/min)
Capacity
(t/h)
Overall
dimension
(L×W×H)
(mm)
Total
weight
(kg)
HX-06 35 2P   37-55 2000-3000 12-30 2500×1620×2600 5600
HX-07 45 4P   55-75 1500-2500 25-55 2700×1760×2800 7600
HX-09 50 4P   110-150 1200-2000 55-100 3900×2000×3070 12600



Model HXVSI-7611 HXVSI-8518 HXVSI-9526 HXVSI-1140
Capacity
(t/h)
Feed both
at center
 and sides
120-180 200-260 300-380 450-520
Feed at
center
60-90 100-130 150-190 225-260
Max.feeding
size(mm)
Soft
material
35 40 45 50
Hard
material
30 35 40 45
Rotation
speed
(r/min)
1700-1890 1520-1690 1360-1510 1180-1310
Double Motor
power(kw)
4P   110 4P   180 4P   264 4P   400
Overall dimension
(L×W×H)(mm)
3700×2150×2100 4140×2280×2425 4560×2447×2778 5000×2700×3300
Total weight(t) 11.8 14.5 17.8 25.6
Power supply 380V 50HZ
Vibrating sensor Detect range 0.1-20mm/s continous and adjustable.
Lubrication
station
Double
motor
power of
oil pump
2×0.31Kw
Safety
assuance
Double oil pumps assure enough oil supply:automatic
 switch off with no oil stream or pressure,water cooling
in summer,motor heating stare-up in winter.
Overall
dimension
(L×W×H)
(mm)
820×520×1270
Power of oil
 tank heater
2KW
