Compound Crusher

Compound Crusher

Compound Crusher

Processing capacity: 12-1000t/h

Discharge opening: 3-60mm

Feeding size: 35-300mm

Applied material: barite, marble, talcum, calcite, dolomite, fluorite, kaoline, coal, gypsum.

  • cobble
  • dolomite
  • granite
  • limestone

Comprehensive Industry Document Stone Crushers (8MB)

Fill in your email address and click on download.

Free download PDF (Product information, 1MB)

Fill in your email address and click on download.

Introduction to Combination Crusher

Compound crusher is a kind of vertical crusher and high-efficient rock crushers, widely applied in medium and fine crushing fields of high hard and super hard materials such as various rocks and ores, cement, refractory, bauxite aggregate, emery and glass raw materials. The vertical crusher gets more popular application in mechanical building sand, stone materials and various kinds of metallurgy slag crushing because it has higher output and production efficiency compared with other types of crushing machines.

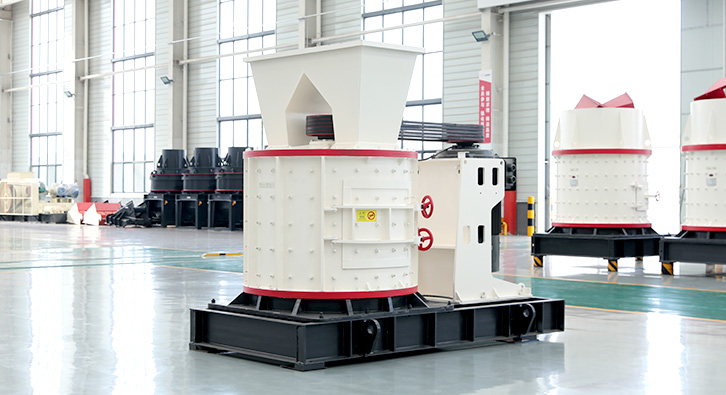

Compound Crusher

Working Principle of Combination Crusher

Raw materials are fed from the top of the combination crusher, and fall into the rotating impeller at a high speed to be crushed. As other materials simultaneously fall around the rotating impeller, the two kinds of materials join together and are crushed by each other. The materials are crushed many times in the impeller of the combination crusher, and are finally discharged from beneath the machine.

Working Features of Rock Crushers

(1) Simple and reasonable structure and low running cost. This rock crushers uses the working principle of stone impacting stone, so that the abrasion is small.

(2) High crushing ratio and energy saving.

(3) Capable of fine crushing and coarse grinding.

(4) Small influence by the materials with high water content.

(5) Working noises is lower than 75db and less powder pollution.

(6) Suitable for medium and super hard materials.

(7) The final products are in cubic shape with high bulk density and the least iron pollution.

(8) Abrasion of the impellor is small and the maintenance and repair is convenient.

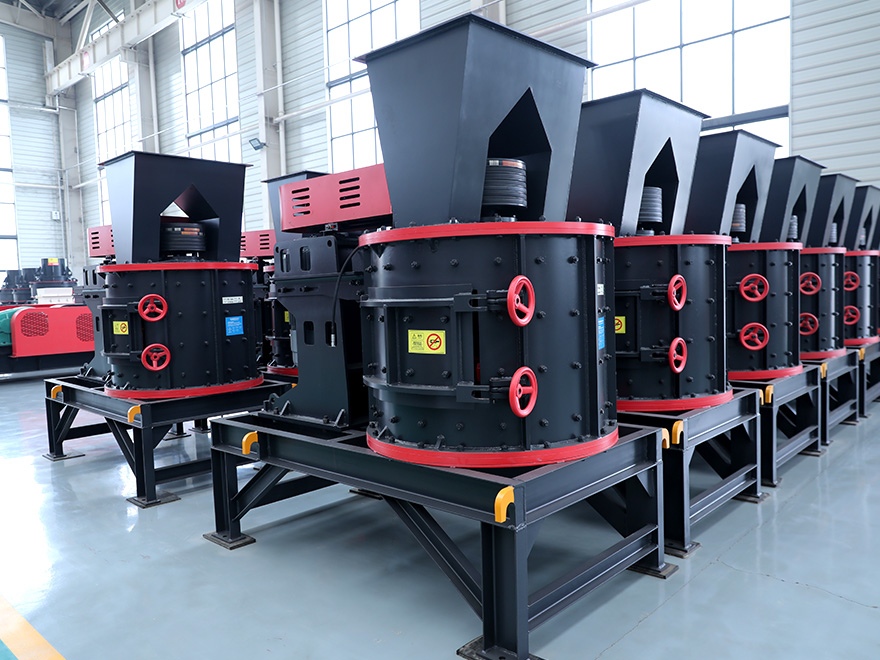

Combination Crusher

Safety Matters that should be Noted during the use of Compound Crusher

1. If emergency fault occurs during the operation of the equipment, the workers can firstly stop the machine and it cannot be restarted until the breakdown is eliminated.

2. If the electric equipment breaks down, it should be processed by an electrician.

3. If it is necessary to check the inside part of the machine, the workers should first pull out the switch and put up a mark for maintenance. Before examining, the materials inside the machine should be cleaned so as not to hurt people. After the examination and before restarting the machine, the upper cap should be put up and the bolt should be tightened.

4. All the safety devices should be complete and fixed. If the communication signals or the telecommunication equipment break down, the crusher cannot be started.

Please leave us a message if you are interested and we won't disappoint you! Thank you!

Technical data

Model
800
1000
1250
1500
1750
Rotor
diameter
(mm)
650
800
1000
1250
1560
Cylinder
height(mm)
800
850
850
1000
1410
Main shaft
rotation
speed
(r/min)
1350
970
740
650
600
Feeding
size(mm)
50
70
100
100
100
Discharging
size (mm)
0-5
0-5
0-5
0-5
0-5
Processing
capacity (t/h)
5-15
10-30
20-60
30-80
40-100
Motor
Power(kw)
4P   30
4P   55
6P   90
8P   110
8P   132
Rotation
speed
1440
1440
750
750
750
Dimensions
(L×W×H)(mm)
2200×860×1980
2700×1160×2000
2800×1400×2730
3100×1900×2300
3350×2100×2800
Total weight (t)
2.3
4.5
9.73
18.1
26.61
