Mobile Crusher

Mobile Crusher

Mobile Crusher

Mobile Crusher

Aggregate industry Construction waste Hardrock mining Ore processing

Types: Wheel-type, Crawler-type, With jaw crusher, cone crusher or VSI crusher equipped as well as screening Unit

Brochure List (3MB)

Fill in your email address and click on download.

Send E-mail:Market@hxjq.com

Join Us On Whatsapp:Click it to Join in

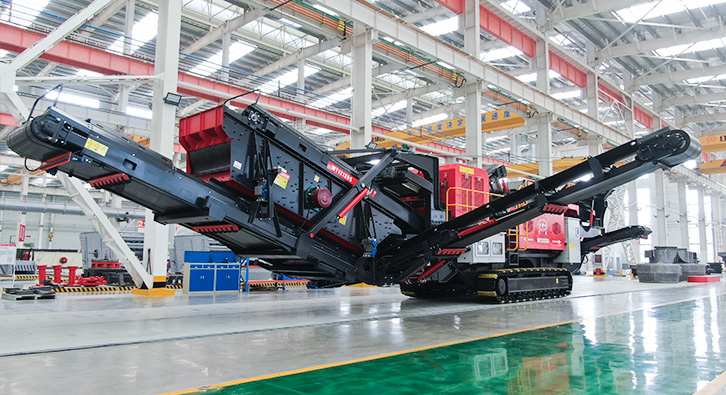

Introduction To HXJQ Mobile Crushers Plant

To HXJQ customers, flexibility is everything. We offer a wide range of mobile crushers and screens, both tracked and wheeled, including jaw crushers, impact crushers, cone crushers, and screens for quarrying and construction projects.In order to bring the most powerful rock and ore crushers and screening plants to the most difficult of jobs, HXJQ have developed revolutionary machines with the highest levels of agility and mobility.

Whether you are looking to crush tonnes of hard rock or produce several sized aggregates with our high output screening plants, the versatility of our equipment and optional extras will ensure that we can always provide the right machine for you.

Applying Scope of Portable Crusher

Mobile Crusher

1. The mobile crushing station is widely used in mining, coal, garbage and construction waste recycling, earthwork, urban infrastructure, roads or construction sites and site operations.

2. The portable crushing plant is used for Processing of topsoil and a variety of other materials; separation viscous to coagulation aggregate; construction and demolition industry; broken after the screening; quarrying industry.

3. Our mobile crusher plant can crush river pebbles, rocks (limestone, granite, basalt, diabase, andesite), ore tailings, the artificial sand stone chips.

Outstanding Features of Mobile Crusher

mobile crushing plant

1. Up to 60% reduction in the 85 dB(A) noise protection distance

2. Significantly reduced noise around the plant; Low dust emission

3. Easier to get an environmental permit and to move

4. Fuel efficient and reliable crushing for the best performance

Technical data


Model HX938F1210 HX938FW1214 HX1149F1315 HX1349HD1110 HX1349HD1315
Transportation Length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum Length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size(mm) 350 350 500 400 700
Production Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) (kw) 320 320 400 320 440
Iron Separator (Optional)(kw) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12


Model HX938HD80 HX1149HD98 HX1349HD110 HX1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 14700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
