Jaw Crusher

Jaw Crusher

Jaw Crusher

Jaw Crusher

Hardrock mining Aggregate industry Construction waste Decorative stone scrap

Applied material: pebble, calcite, granite, quartz, concrete, dolomite, iron ore, limestone, construction waste, coal, etc

Send E-mail:Market@hxjq.com

Join Us On Whatsapp:Click it to Join in

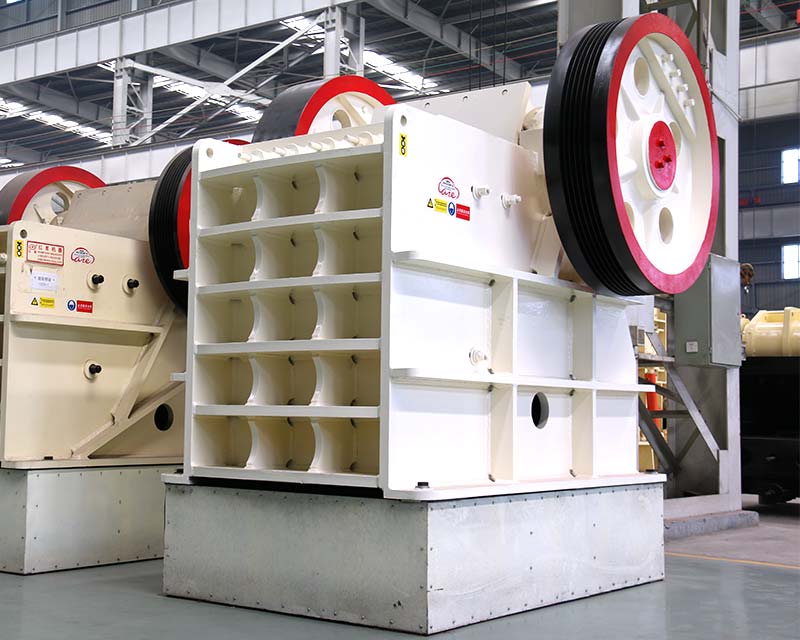

Introduction to Jaw Crusher Machine

The stone jaw crusher can be used for primary, secondary and tertiary crushing. The raw materials are in wide scope with common feature that compressive strength is from 147MPa to 245 MPa.

jaw crusher

Technical Features of Jaw crusher

1): Welded fixed steel structure

High quality steel plate invoids the defects of casted steel, making the whole frame more stable

jaw crusher

(A new jaw crusher is delivering to Ghana)

2): Unique flywheel design

Unique flywheel design; reduce vibrating effectively; machines work more stably

jaw crusher

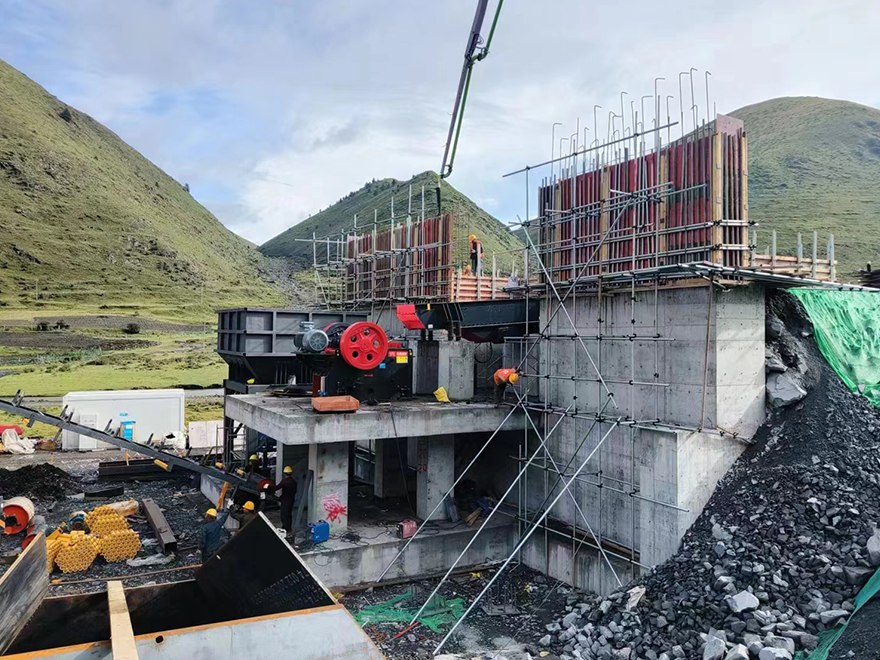

(The Jaw crusher is Just Installed For Test Run)

3): More convenient outlet discharging

Discharging outlet dash adjusting easily and reliable, convenient maintenance

jaw crusher

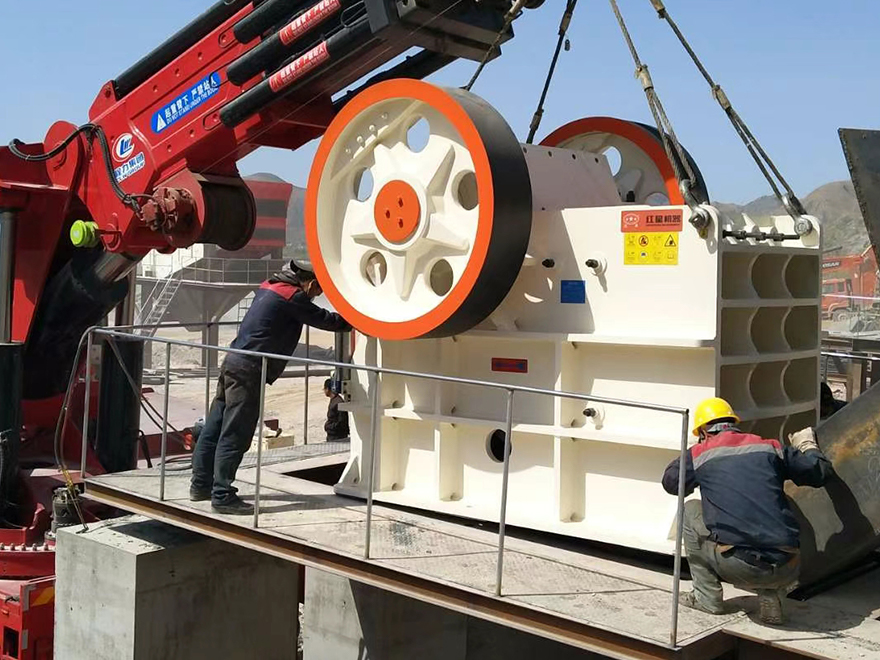

(Final picture shot for remembering the Successful test Run)

Durable Jaw Crusher After Five Years

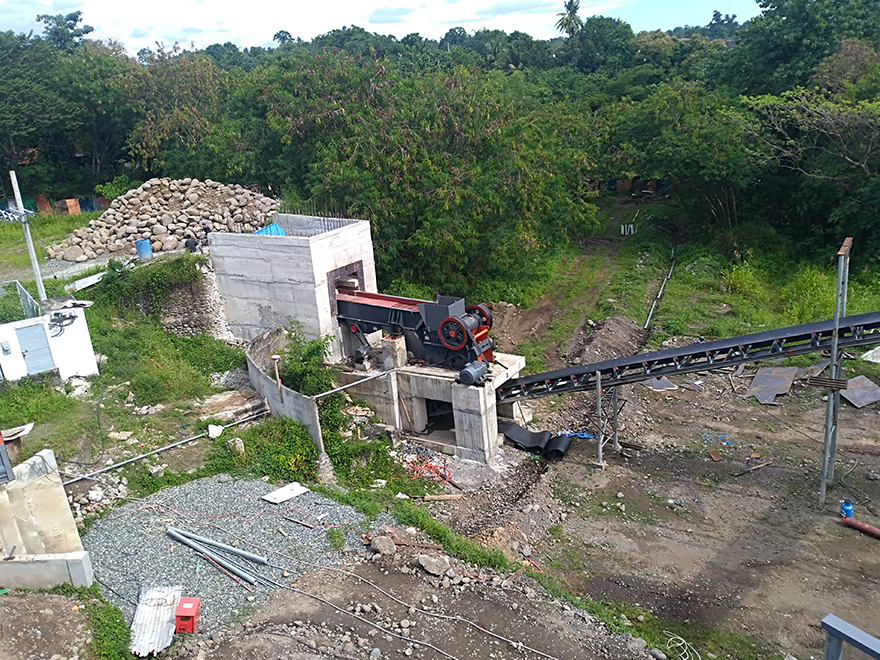

This jaw crusher has been used for more than 5 years, which was installed in Hebei, china, and used for processing basalt materials as primary crushing.

jaw crusher

(Just Installed)

jaw crusher

(After 5 Years)

Technical data

Model Feed opening size(mm) Max.Feeding size (mm) Adjustment range of discharge port (mm) Capacity(t/h) Rotation speed of eccentric shaft(r/min) Power (kw) Dimensions(L×W×H) (mm)
PE 150×250 150×250 125 10-40 1-3 268 4P   5.5 760×700×860
PE 200×300 200×300 180 15-50 2-6 260 4P   7.5 915×780×990
PE 200×350 200×350 180 18-60 3-10 276 4P   11 1000×914×1112
PE 250×400 250×400 210 20-70 5-21 300 6P   15 1100×1032×1285
PE 400×600 400×600 340 40-100 16-64 270 6P   30 1623×1736×1615
PE 500×750 500×750 425 50-100 40-110 268 6P   55 1920×1850×1920
PE 600×750 600×750 500 150-200 80-240 268 6P   55 2020×1850×1920
PE 600×900 600×900 500 65-160 50-160 254 6P   55 2530×1900×2340
PE 750×1060 750×1060 630 80-180 110-320 245 8P   110 2680×2380×2785
PE 900×1200 900×1200 750 100-200 220-380 208 8P   110 3470×2876×3330
PE1200×1500 1200×1500 1020 150-350 400-1000 180 8P   160-245 4850×3220×3680
PE1500×1800 1500×1800 1200 220-350 500-1200 180 8P   280-380 5160×3660×4248
PEX 150×750 150×750 120 18-48 8-25 320 4P   15 1170×1575×1030
PEX 250×750 250×750 210 25-60 13-35 320 6P   22 1550×1730×1470

PEX

250×1000

250×1000 210 25-60 16-52 330 6P   30 1580×2006×1390

PEX

250×1200

250×1200 210 25-60 20-61 330 6P   37 1780×2214×1430

PEX

300×1300

300×1300 250 20-90 16-105 300 6P   55 2210×2320×1723

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
