Cone Crusher

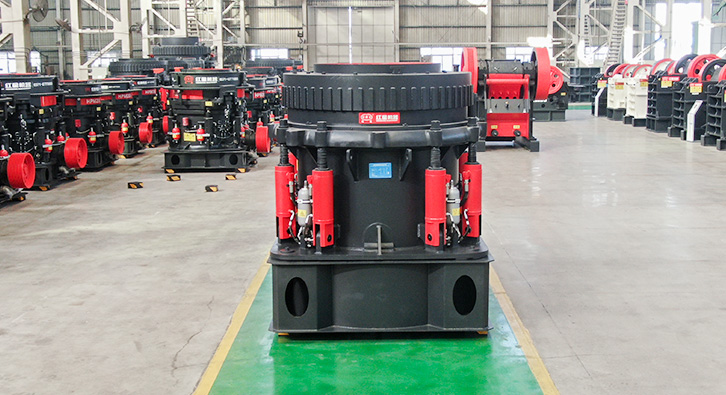

Cone Crusher

Cone Crusher

Processing capacity: 12-1000t/h

Cone diameter: 600-2200mm

Feeding size: 35-300mm

Discharge opening: 3-60mm

Applied material: barite, marble, calcite, kaoline, coal, gypsum, concrete.

  • coal
  • concrete
  • pebble
  • quartz

Comprehensive Industry Document Stone Crushers (8MB)

Fill in your email address and click on download.

Free download PDF (Product information, 1MB)

Fill in your email address and click on download.

Introduction to cone crusher:

Symons cone crushers is a type of hydraulic cone crusher with the advanced big power, big crushing ratio and higher working efficiency, which is researched on the basis of combining the advanced technology and mechanism coming from some developed countries. This latest hydraulic cone crusher is quite different from the traditional cone crushers, which has the power to combine all the merits of all kinds of cone crushers.

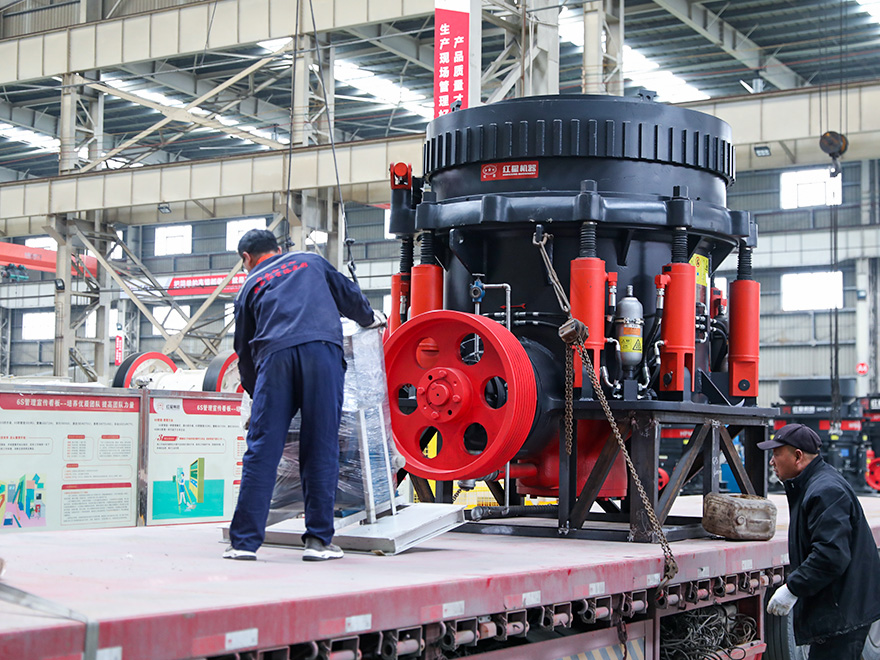

Cone Crusher

Application and advantages of symons cone crushers:

Symons cone crushers or the hydraulic cone crusher is applied in the industries such as metallurgy, building, road paving, chemical industry and Portland in order to realize the crushing of raw material, and which also can crush the middle hardness and hardest hardness of all kinds of rock and mineral stone. Symons cone crushers has the advantages of big crushing ratio, higher working efficiency, lower energy consumption, and medium granularity, which is used to crush the mining stone and rock for reaching fine crushing and medium crushing.

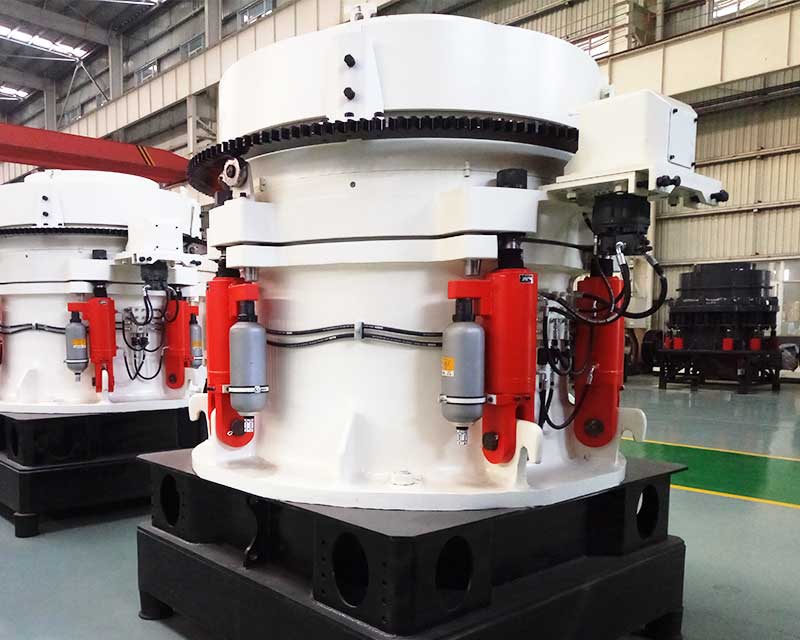

cone crusher

Structure of the hydraulic cone crusher:

The structure penetration and the main parameter: the main structure frame, the horizontal axis, moving cone, balance wheel, eccentric sleeve, on the broken wall (fixed cone), under the crushing wall (dynamic cone), fluid couplings, lubrication system, hydraulic system, several parts of the control system, etc.

Cone Crusher

Precaution when using cone crusher:

 1. The right choice for the broken material crushing chamber.

2. Size of feed ratio is appropriate.

3. In crushing chamber within the range of 360 ° to the material distributed evenly.

4. Automatic control means.

5. The discharging of cone crusher is smooth.

6. The maximum output of the crushing machine and specifications of the conveyor belt is adaptable.

7. Select the appropriate pre-screening and closed screening sieve specifications.

cone crushers

Please leave a message if you are interested and we won't disappoint you! Thank you!

Hongxing Machinery is an old and trustful company which makes high quality cone crushers. To select the cone crusher manufacturer of Hongxing means to select the first class service as well as the first class cone crusher supplier. Hongxing will be your best partner.

Technical data

Specification Model Diameter
of large
end of
crushing
 cone
(mm)
Max.feeding
size(mm)
Width of
discharge
opening
(mm)
Processing
capacity
(t/h)
Motor
power
(kw)
Total
weight
(t)
Dimensions
(L×W×H)
(mm)
Φ600 PYB600 600 65 12-25 40 8P   30 5 2234×1370×1675
PYD600 35 3-13 12-23 5.5 2234×1370×1675
Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2 2692×1640×2350
PYZ900 60 5-20 20-65 11.2 2692×1640×2350
PYD900 50 3-13 15-50 11.3 2692×1640×2350
Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7 2790×1878×2844
PYZ1200 100 8-25 42-135 25 2790×1878×2844
PYD1200 50 3-15 18-105 25.3 2790×1878×2844
Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3 3910×2894×3809
PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
PYD1750 85 5-13 60-180 50.2 3910×2894×3809
Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80 4622×3302×4470
PYZ2200 230 10-30 130-410 80 4622×3302×4470
PYD2200 100 5-15 80-200 81.4 4622×3302×4470
