Cement Mill

  • Supply Ability:100 Set/Sets per Month
  • Port:Qingdao,Tianjin, Shanghai or others
  • Feature:Small footprint, Easy maintenance, Save power
Cement Mill
  • Place of Origin:Henan China (Mainland)
  • Color: Orange/ white
  • Type: Building materials equipment
  • Certificate:ISO9001:2008
  • Warranty: 12 Month
  • Installation:under engineer's guidance
  • Features

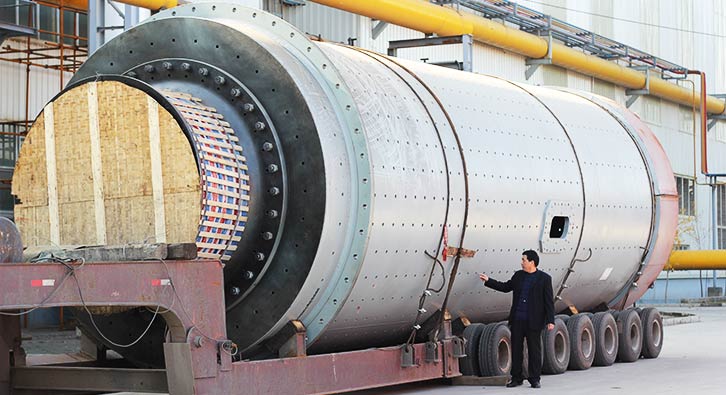

Introduction to Cement Grinder

The cement mill or cement grinder is the key equipment for further crushing after the materials are broken. The cement miller is widely used in cement, silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal and glass ceramics. The cement mill is available in both wet process grinding and dry process grinding of all kinds of ores and other materials.

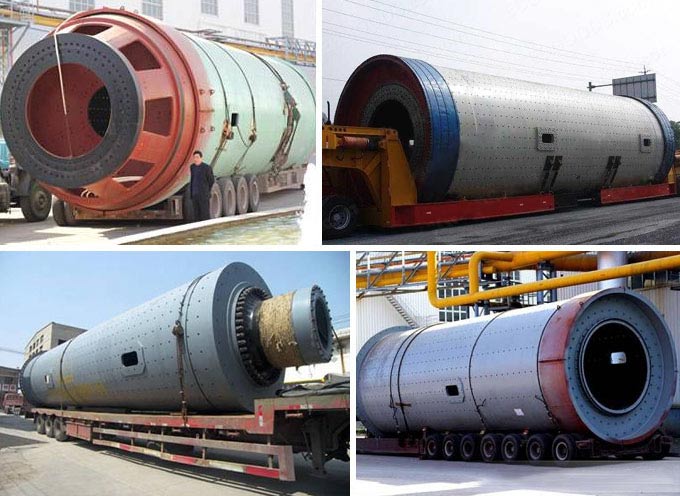

Cement MILL

Features of the Cement Mill

The cement grinder features strong adaptability to the materials, high crushing ratio, reliable operation and easy adjustment of granularity. In addition, the grinding and the drying can be carried out simultaneously.

Working Principle of Cement Miller

The materials enter the first silo of the cement grinder, where there are ladder lining boards or corrugated lining boards installed with different sizes of steel balls, through the feeding device evenly and spirally.The centrifugal force produced by the rotating cylinder raises the steel balls to a certain height, which then fall down, resulting into a strong crushing and grinding to the materials. After being coarsely crushed in the first silo, the materials get into the second silo with plane lining boards embedded with steel sections through the single-wall partition for further crushing. The powder will be discharged by the discharge port. Thus, the grinding work is done.

Contact us if you want the detailed cement mill price: +86-371- 67833171.

The manufacturing address of the cement mill: No.8, Tanxiang Road, Zhengzhou, Henan, China

Technical data

Product specification
(m)
Milling form Transmission form Gear box Motor power
(kw)
Production capacity
(t/h)
Total weight
(t)
Model Speed reduction ratio
Φ1.83×7 Open flow Brim ZD60 4.5 245 6.5-8 43.8
Φ2.2×7.5 Open flow Brim ZD70 5 380 8-10 64.8
Φ2.2×11 Open flow Brim D110 35.5 630 12-13 104.6
Φ2.2×13 Open flow Brim D110 35.5 630 16-18 114
Φ2.4×13 Open flow Brim D110 35.5 800 20-23 130.6
Φ2.6×13 Open flow Brim MFY100 19.5 1000 28-32 158
Φ3×9 Circle flow Brim D125 41.2 1000 28-36.5 167
Φ3×11 Circle flow Brim D140 42.8 1250 36-47 180
Φ3.2×13 Open flow Brim D140 36.5 1600 45-50 225
Φ3.5×13 Circle flow Brim JDX1000 5.84 2000 60-65 275
Φ3.8×13 Open flow Central shaft MFY250 16.5 2500 60-62 320
Φ4.2×13 Open flow Central shaft JQS3550 15.6 3530 85-87 380
Φ4.6×14 Circle flow Central shaft JSI160-C 14.6 4200 120-135 485
