Cement Rotary Kiln

Cement Rotary Kiln

Cement Rotary Kiln

Specification: Φ2.5×40m-Φ6.0×95(m)

Processing capacity: 180-1000(t/d)

Applied material: dolomite, active lime, cement clinker, and bauxite.

Applied area: portland cement making industry.

  • active-lime
  • bauxite
  • cement
  • limestone

Operating Instruction Henan Hongxing Heavy Machinery Co., Ltd. M BUILDING MATERIIALS EQUIIPMENTclick on download (4MB)

Fill in your email address and click on download.

Free download PDF (Product information, 1MB)

Fill in your email address and click on download.

Overview

The rotary cement kiln belongs to building equipment such as chemical rotary kiln and active lime rotary kiln. According to different materials, there are cement kiln, metallurgy chemical kiln and lime kiln. Cement rotary kiln is widely used for calcining cement clinker and there are two types for cement production: dry cement kiln and wet cement kiln.

Cement Rotary Kiln

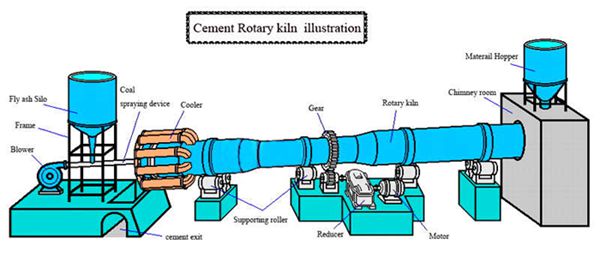

Working Principle of Cement Rotary Kiln:

The materials to be burnt get into the stove from the higher end of the cylinder. Due to the slope and slow rotation of the cylinder, the material moves around from top to bottom along the axis to finish its process. At last, the finished materials get into the cooler through the burner hood. The fuel gets into the kiln through the head of the kiln. The waste gas will be discharged from the end of the kiln after exchanging heat with the materials.

Cement Rotary Kiln

Major Types of Cement Rotary Kiln:

In the mining production process, there are many types of rotary kilns. According to the firing methods of the kiln, it can be divided into direct fired rotary kiln and indirect fired rotary kiln; according to the processing methods, it can be divided into dry process rotary kiln, wet process rotary kiln and dry and wet types rotary kiln.

In addition, Hongxing Machinery now has researched and developed a cylinder rotary kiln which has a cylinder drum, thus improving the production capacity of the machine and reducing the energy consumption. And what is more, the clay rotary kiln now also has wide application range in the cement making, building materials and clay manufacturing industry.

Technical data

Product specifications(m) Kiln dimensions Capacity(t/d) Rotation speed(r/min) Motor power(kw) Total weight(t) Note
Diameter(m) Length(m) Obliquity(%)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61 Kiln with shaft cyclone preheater
Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 ----
Φ2.5×54 2.5 54 3.5 204 0.48-1.45 55 196.29 ----
Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ----
Φ2.8×44 2.8 44 3.5 400 0.437-2.18 55 201.58 Outside disassemble kiln
Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ----
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237 Outside disassemble kiln
Φ3.0×60 3 60 3.5 300 0.3-2 100 310 Alumyte-alumina forge kiln
Φ3.2×50 3.2 50 4 1000 0.6-3 125 278 Outside disassemble kiln
Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 Kiln with preheater precalcine
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 Kiln with preheater precalcine
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Generating kiln for using ofterheat
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456 Kiln with preheater precalcine
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 Kiln with preheater precalcine
Φ4.2×60 4.2 60 4 2750 0.4-3.98 375 633 Kiln with preheater precalcine
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 Kiln with preheater precalcine
Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4 Kiln with preheater precalcine
Φ4.7×74 4.7 74 4 4500 0.35-4 630 849 Kiln with preheater precalcine
Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899 Kiln with preheater precalcine
Φ5.0×74 5 74 4 6000 0.35-4 710 944 Kiln with preheater precalcine
Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265 Kiln with preheater precalcine
Φ6.0×95 6 95 4 10000 Max5 950×2 1659 Kiln with preheater precalcine
