Raymond Grinder

Powder making Stationary grinding Dry working Wide application

Applied materials: barite, limestone, quartz, calcite, granite, porcelain clay, basalt, gypsum etc.

Send Inquiry Get Latest Price

Join Us On Whatsapp: Click it to Join in

Introduction to the Grinding Mill

R-type raymond mill is used for the highly fine powder processing of 280 kinds of non-flammable and non-explosive materials in mine, chemical industry and building materials, etc. The particle size of finished product can be adjusted from 80-325 meshes at random.

raymond mill

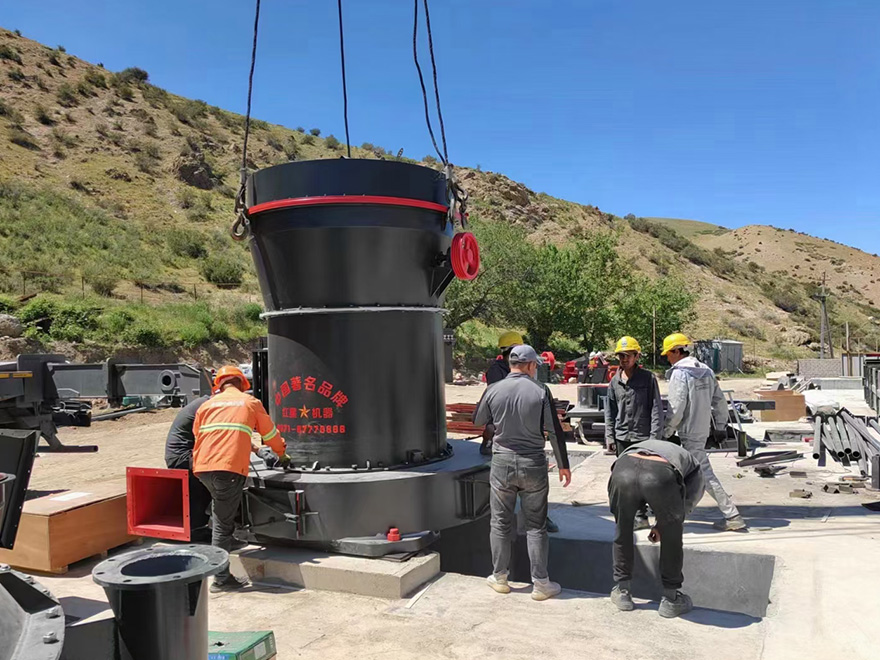

(Installation raymond mill at site in hubei, china)

Technical Features of Raymond Mill

1: Rotating stably; operating reliably

Main mill transmission device adopts sealed gear box and belt wheel design with smooth transmission and reliable operation

raymond mill

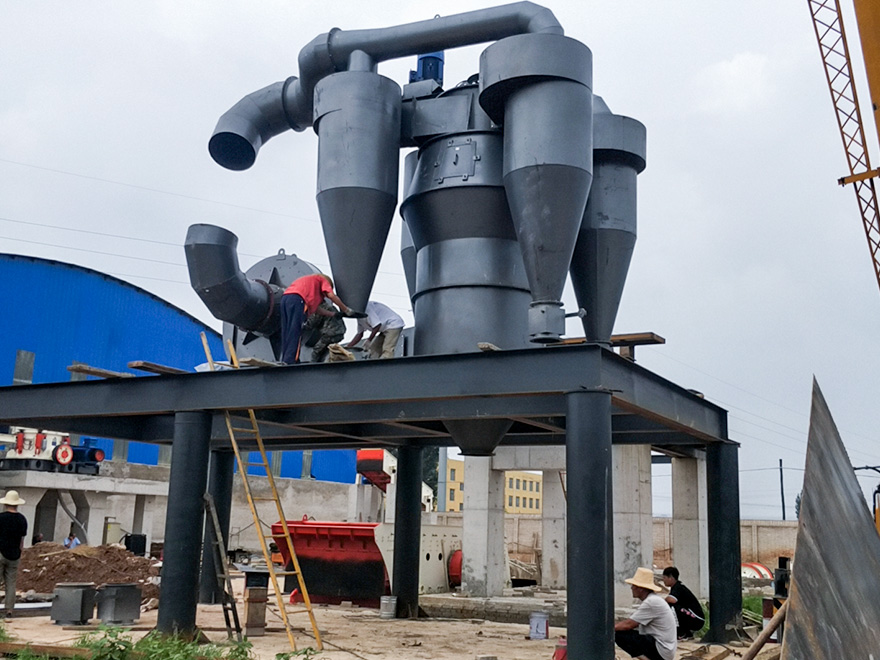

(Installation work is finished by HXJQ workers)

2: High screen-pass rate

Compared with other grinding machines, the new model pass rate is up to 99%, which is impossible for old type

raymond mill

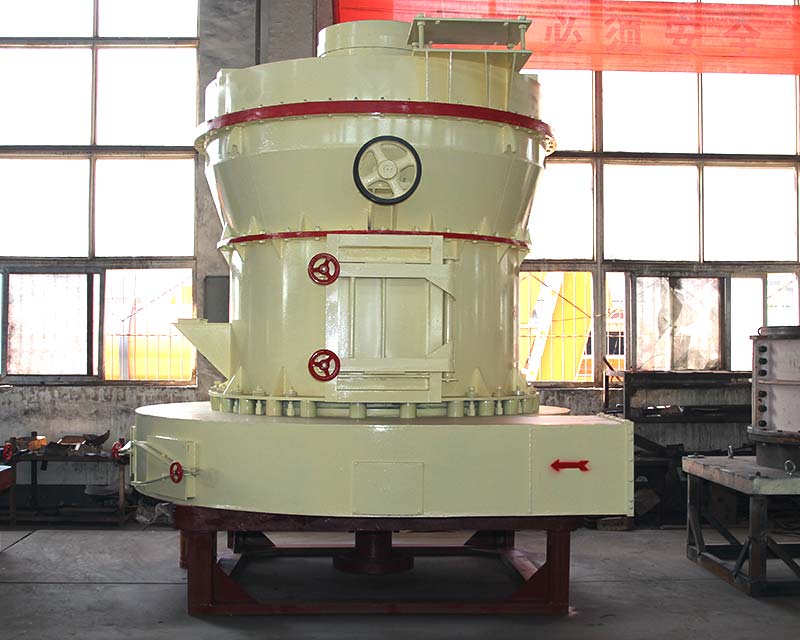

(Test run of Raymond mill)

3: Long life-span of the quick-wear parts

Quick-wear parts are made of high manganese steel with long service life. All the motors brands are national standard

raymond mill

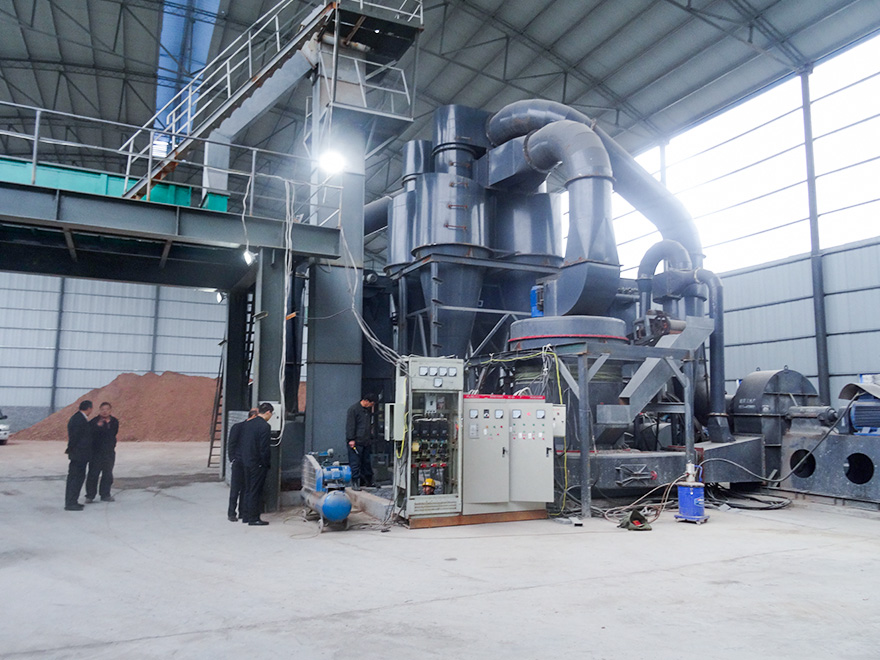

(Welcome send inquiry to our website for get Immediate Price)

Technical data

Parameter Model	Raymond mill62	High strength66	High strength76	High strength87	High strength92	High strength93	High strength97	Raymond mill4119	Raymond mill4525
Feeding size（mm）	<15	<15	<20	<25	<25	<25	<25	≤25	≤30
Size of finished product（mm）	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.044	0.173-0.044
Shift output of different material fineness(t)	0.6-9	1-20	1.5-25	2.8-33	3-36	3.5-40	4-52	8-78	16-176
Rotate speed of central shart（r/min）	274	190	170	161	148	140	130	105	82
Diameter of pulverizing ring（mm）	525	725	850	907.5	973	1006	1050	1400	1770
Diameter of pulverizing ring（mm）	150	210	250	270	300	300	310	410	450
Height of pulverizing roller（mm）	100	150	150	150	160	160	170	190	250
Main Motor(kw)	7.5	15	18.5	22	30	30	37	75	132
Fan Motor	4-5.5	4-11	4-15	4-18.5	4-22	2-22	4-37	4-75	4-132
Analyzer Motor	6-1.1	6-2.2	6-2.2	6-2.2	6-2.2	6-3	4A-5.5	4B-7.5	4A-18.5
