Raw Material Mill

Raw material mill is designed through long-term exploration and practice summary. It is widely used in cement, silicate products, new building materials, refractories, and glass ceramics and other production industries for grinding all kinds of ores and other grind materials.

Send E-mail:market@hxjq.com

Send Inquiry Get Latest Price

Join Us On Whatsapp: Click it to Join in

Introduction

Raw material mill is mainly used in the grinding of the cement raw, which is also suitable to grind various ores and other grinded materials in the metallurgy, chemical, electricity and other industrial and mining enterprises. It refers to both dry production and wet production, which can also simultaneously grind and parch.

And it can be applied to the open flow grinding and cycle circuit grinding composed of power concentrator as well. The transmission type of the raw material mill is rim drive, which is compact structure and small footprint and thus greatly saves the user investment.

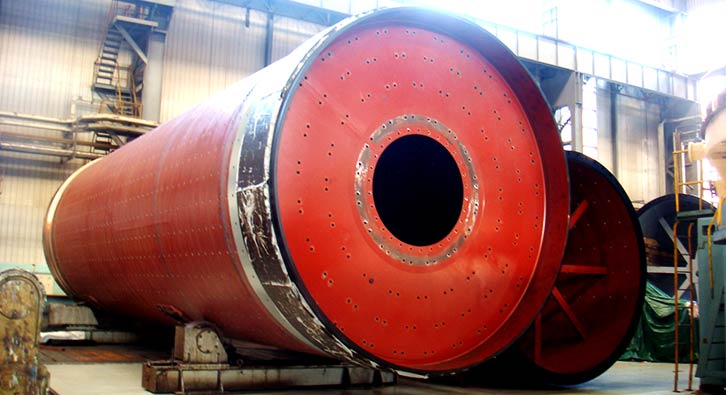

Raw material mill

Technical data

Spec./m (Dia.×Length)	Speed(r/min)	Feeding Size(mm)	Capacity(t/h)	Griding Media Loading(t)	Main Motor (KW)	Main Reducer	Weight (t)
Ф1.83×7.0	23.8	＜20	3～5	22	245	ZD60	43.5
Ф1.83×9.5	24.1	＜20	5～7	31	355	ZD70	56
Ф2.2×9.5	21.5	＜20	8～10	41	475	ZD70	74
Ф2.2×11	21.5	＜20	10～12	50	570	ZD80	109
Ф2.4×11	20.3	＜20	12～14	57	630	ZD80	116
						MBY560
Ф2.4×13	20.3	＜20	14～16	68	800	MBY710	138
						JDX710
Ф2.6×11	19.7	＜20	15～16	69	800	MBY710	138
						JDX710
Ф2.6×13	19.7	＜20	16～18	82	1000	MBY800	158
						JDX800
Ф3.0×12	18.2	＜20	18～20	100	1250	MBY800	182
						JDX800
Ф3.0×13	18.2	＜20	21～23	108	1400	MBY900	190
						JDX900
Ф3.2×13	17.8	＜20	25～27	128	1600	MBY1000	230
						JDX1000
Ф3.2×14	17.8	＜20	28～30	138	1800	MBY1000	249
						JDX1000
Ф3.5×13	17.3	＜20	32～35	156	2000	JS130-A	275
