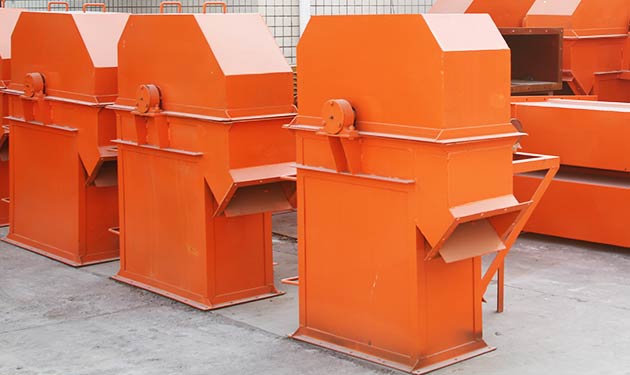

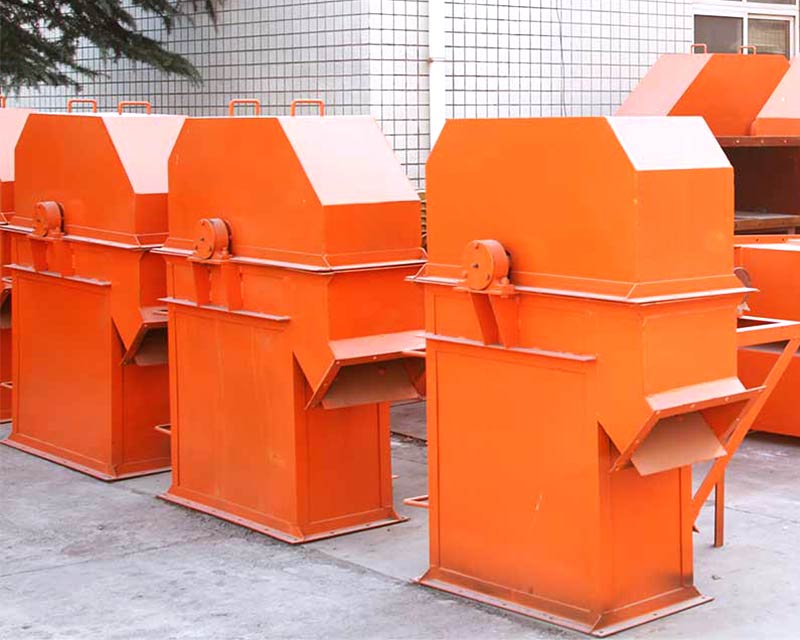

Bucket Elevator

Bucket Elevator

Bucket Elevator

Bucket Elevator

A bucket elevator, also called a grain leg, is a mechanism for hauling flowable bulk materials vertically.

Range of application: Coal, cement, stone, sand, clay and ore

Fill in your email address and click on download.

Send E-mail:Market@hxjq.com

Join Us On Whatsapp:Click it to Join in

Overview

The bucket elevator is suitable for elevating materials from a lower level to a higher level and the materials are conveyed upward in an automatic and continuous manner through the vibrating station. According to the transportation quantity, the transportation speed can be adjusted and the lifting height can also be selected according to the requirements of the customers. This bucket elevator has many advantages such as big conveying quantity, high elevating height, stable and reliable operation and long service life.

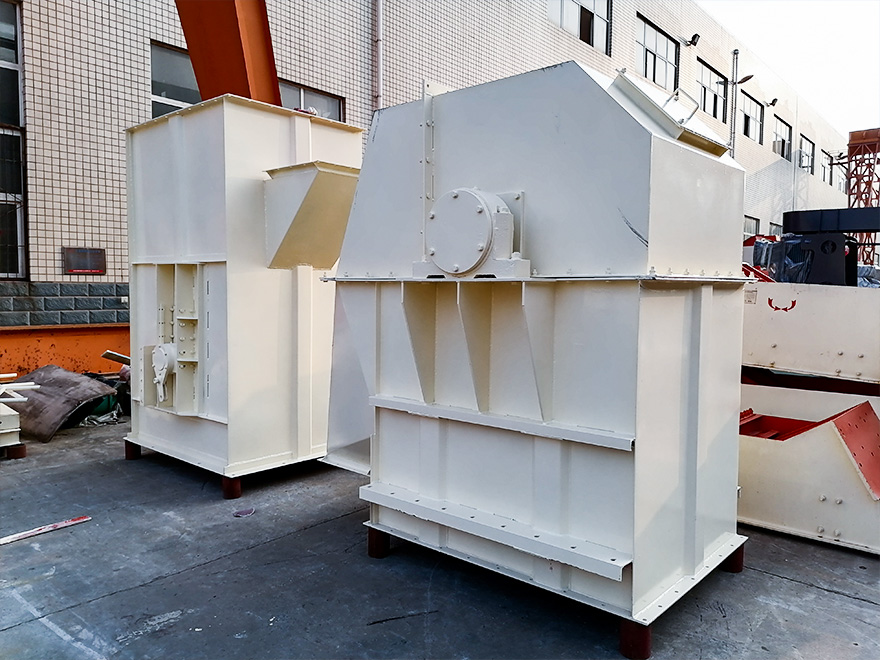

Bucket Elevator

Main Features of Bucket Elevator:

1. Small driving power

2. Wide application ranges

3. Good operational reliability

4. Long service life

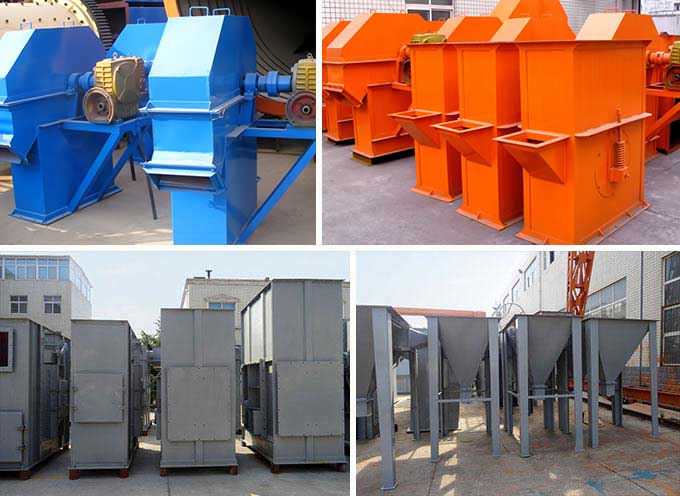

Bucket Elevator

Technical data

Technical parameters of ring chainbucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Pitch of buckets
(mm)
Motor prower
(kw)
TH160 25 7-12 15-20 400 3-4
TH200 28 8-15 20-30 500 3-5.5
TH250 30 10-25 25-35 500 4-7.5
TH300 30 25-35 30-40 500 5.5-11
TH315 40 30-40 35-45 512 5.5-15
TH400 40 45-60 40-55 512 11-22
TH500 40 65-80 50-60 512 15-30
TH630 40 100-120 60-65 688 18.5-37
TH800 40 130-150 65-75 920 22-45

Technical parameters of wire belt bucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Bucket Volume
(L)
Motor prower
(kw)
TDG160 80 34 0-20 2.6 2.2-11
TDG200 80 45 0-25 4.1 3-15
TDG250 80 71 0-30 6.5 5.5-22
TDG315 80 101 0-35 10 7.5-30
TDG400 80 158 0-40 16 15-45
TDG500 80 218 0-45 25 18.5-55
TDG630 80 345 0-50 40 30-90
TDG800 80 491 0-50 61 45-132

Plate chain bucket elevator

Specification Max.lifting height
(m)
Max.lifting capacity
(m³/h)
 Percentageallowed
(%)
Pitch
(mm)
Motor power
(kw)
10 25 50 75 100
Max.size(mm)
NE15 40 16 65 50 40 30 25 101.66 1.5-4
NE30 59 31 90 75 58 47 40 152.4 2.2-7.5
NE50 62 60 90 75 58 47 40 152.4 3-15
NE100 58 110 130 105 80 65 55 200 7.5-30
NE150 65 170 130 105 80 65 55 200 11-37
NE200 73 220 170 135 100 85 70 250 18.5-75
NE300 61 320 170 135 100 85 70 250 22-75
NE400 47 420 205 165 125 105 90 300 45-90
NE500 58 500 240 190 145 120 100 300 45-132
